PROBES
Scroll down to view specs or download the Probe Specs Spreadsheet
CA0909
Description:
Borehole Caliper
Measurement Range:
Hole Diameter: 50.8mm – 356mm (2″ – 14″)
Diameter:
41.3mm (1.63″)
Length:
1499mm (59.0″)
Weight:
7Kg (15.4Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20o to 60oC (-4o to 140oF)

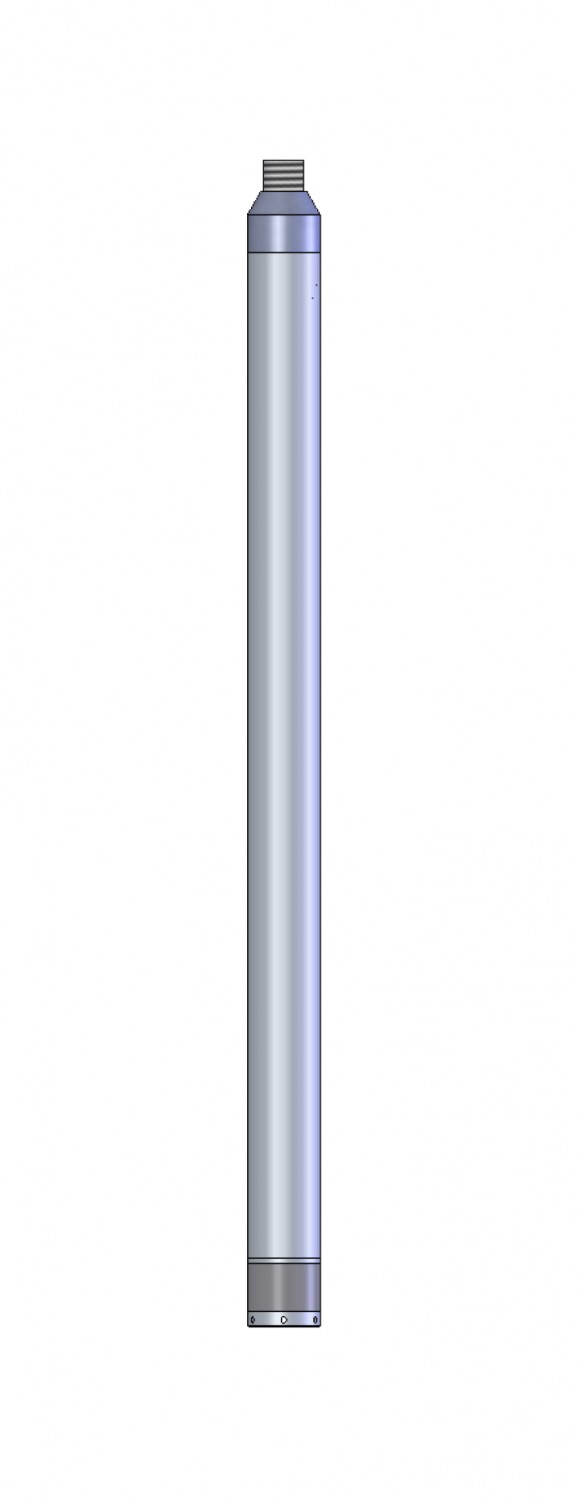

DEBCM-01
Description:
Borehole Video
Measurement Range:
High resolution color video: NTSA:525 Lines, 60 scan/sec, 1.0 Lux
Diameter:
Ø44mm (1.73″)
Length:
578mm (22.8″)
Weight:
1.8Kg (4 Lb)
Pressure Rating:
22.7MPa (3300PSI)
Operating Temperature:
-20º to 60ºC
(-4º to 140ºF)

DEBIC-01
Description:
Induction Conductivity
Measurement Range:
0.1mS to 10S/m
Diameter:
Ø40.0mm (1.57″)
Length:
762mm (30.0″)
Weight:
2.0Kg (4.4Lb)
Pressure Rating:
22.7MPa (3300PSI)
Operating Temperature:
0º to 70ºC
(32º to 158ºF)

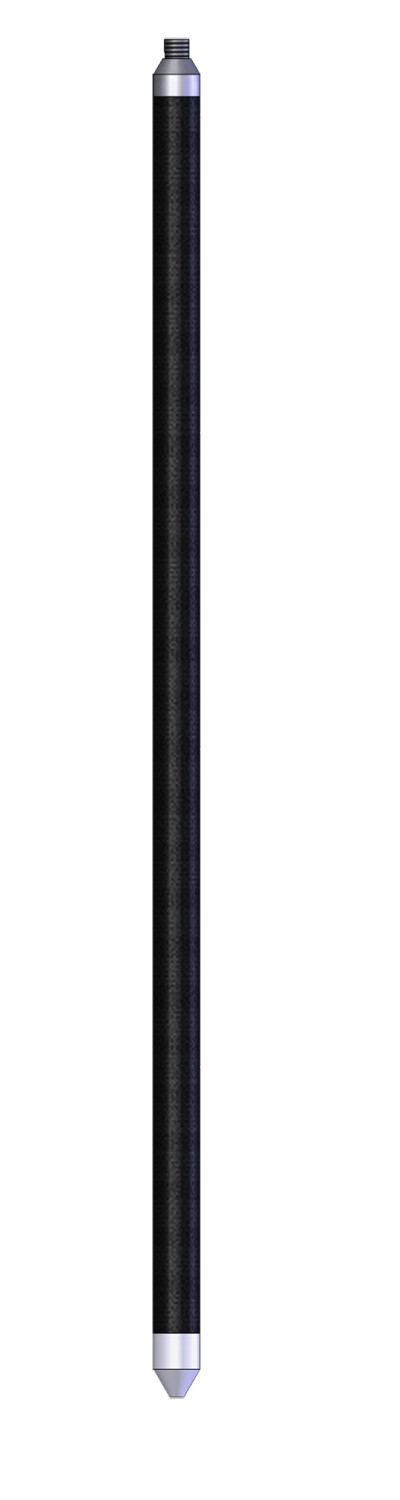

DEBMS-01
Description:
Magnetic Susceptibility
Measurement Range:
10e-5 to 10e-1 cgs
Diameter:
Ø40.0mm (1.57″)
Length:
1200mm (47.2″)
Weight:
4Kg (8.8Lb)
Pressure Rating:
22.7MPa (3300PSI)
Operating Temperature:
0º to 70ºC
(32º to 158ºF)

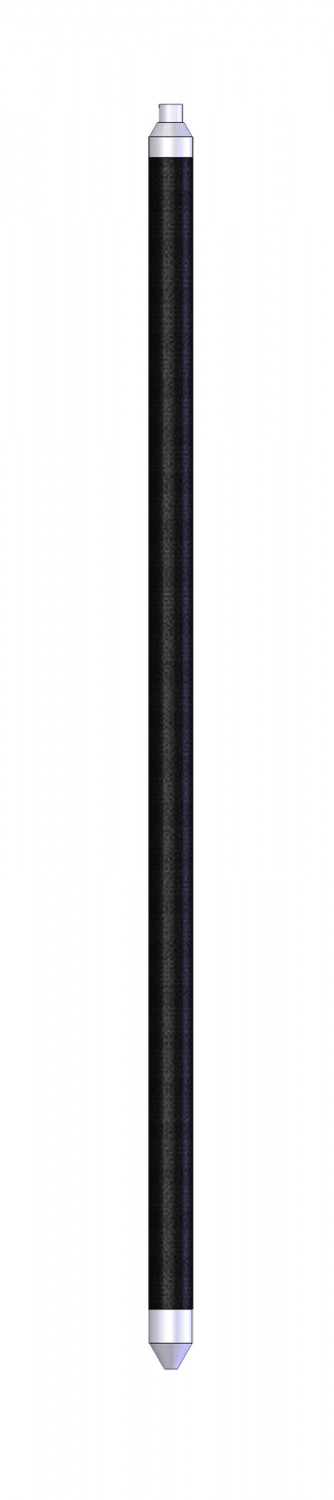

DEBSG-01
Description:
Spectral Gamma
Measurement Range:
Three channel (K, U, Th) plus total count gamma spectrometer
Diameter:
Ø40.0mm (1.57″)
Length:
1200mm (47.2″)
Weight:
3.5Kg (7.7Lb)
Pressure Rating:
22.7MPa (3300PSI)
Operating Temperature:
0º to 70ºC
(32º to 158ºF)

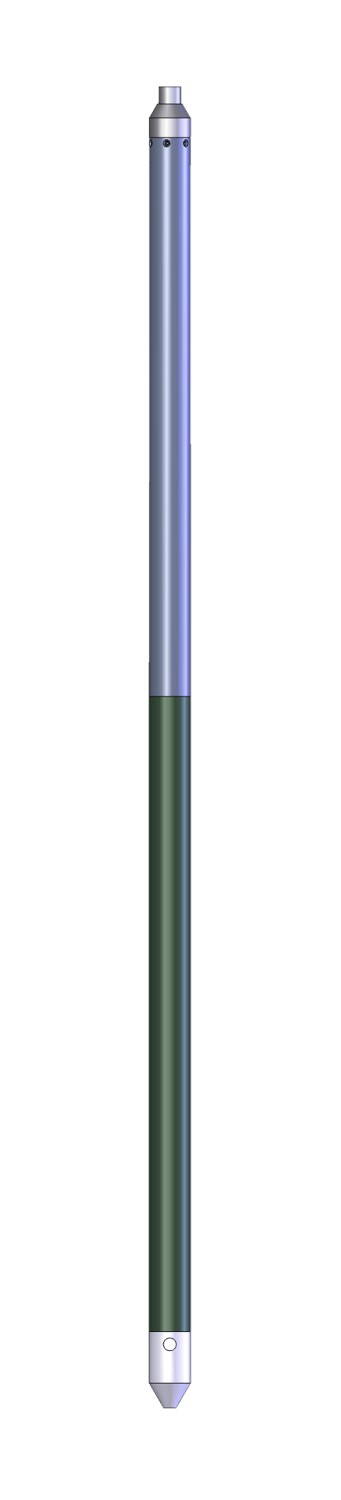

DV9509
Description:
Borehole Deviation
Measurement Range:
Vector Magnetometer and two axis inclinometer
Diameter:
Ø41.3mm (1.63″)
Length:
1321mm (52.0″)
Weight:
4.0Kg (8.9Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20º to 60ºC
(-4º to 140ºF)

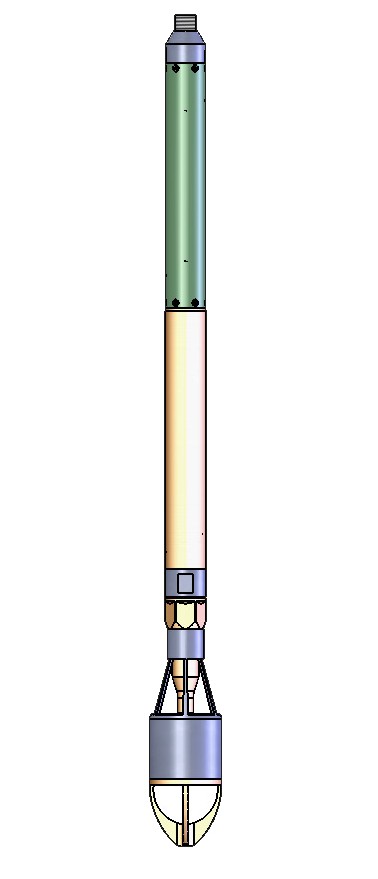

FM1009
Description:
Impeller Flow Meter
Measurement Range:
Various Impellers are available
Diameter:
41.3mm (1.63″)
Max set byimpeller cage
Length:
1300mm (51.2″)
Weight:
5Kg (11Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20o to 60oC (-4o to 140oF)

FS-1505
Description: Fluid Sampler
The fluid sampler is deployed and controlled by the logging system and permits the acquisition of 1 liter samples of well fluid from a desired depth increment.

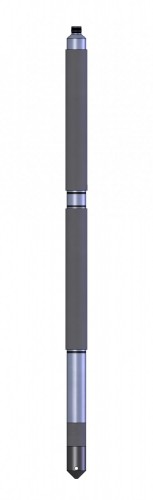

GE0809cb
Description:
Compact Combination Gamma/Electric probe, replaceable batteries (single conductor systems)
Measurement Range:
Natural Gamma: 0 to 100K CPS (Ø1.0″ x 3.0″)
Self Potential: ±2000mV
16″ Normal Resistivity: 0 to 5000 ohm-M
Single Point Resistivity: 0 to 5000 ohms
Diameter:
Ø44.5mm (1.75″)
Length:
979mm (38.5″)
Weight:
4.5Kg (9.9Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20º to 60ºC
(-4º to 140ºF)

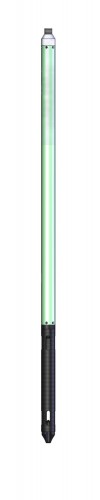

FT9504
Description:
Fluid Temperature
Resistivity/Conductivity
Measurement Range:
Fluid Resistivity: 0 to 200 ohm-M
Fluid Conductivity: 0 – 50000uS
Fluid Temperature: -5o to 60ooC (23o to 140oF)
Temperature resolution: 0.01oC
Diameter:
41.3mm (1.63″)
Length:
1240mm (48.8″)
Weight:
4.1Kg (9Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20o to 60oC (-4o to 140oF)

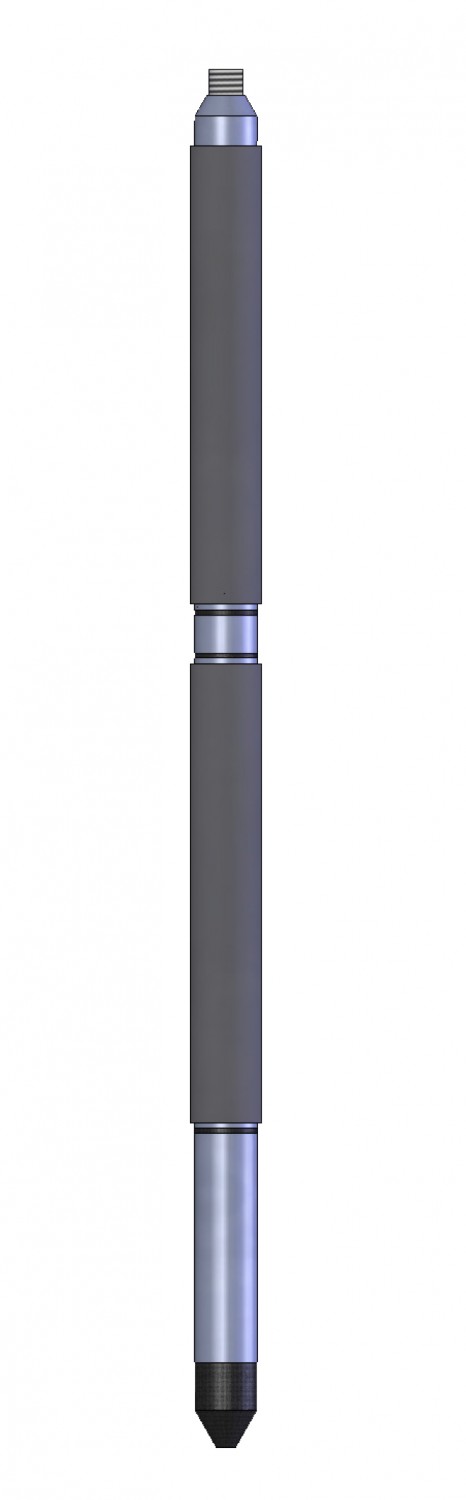

GE0809c
Description:
Compact Combination Gamma/Electric probe
(4-conductor systems)
Measurement Range:
Natural Gamma: 0 to 100K CPS (Ø1.0″ x 3.0″)
Self Potential: ±2000mV
16″ Normal Resistivity: 0 to 5000 ohm-M
Single Point Resistivity: 0 to 5000 ohms
Diameter:
Ø44.5mm (1.75″)
Length:
916mm (36.1″)
Weight:
3.6Kg (7.9Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20º to 60ºC
(-4º to 140ºF)

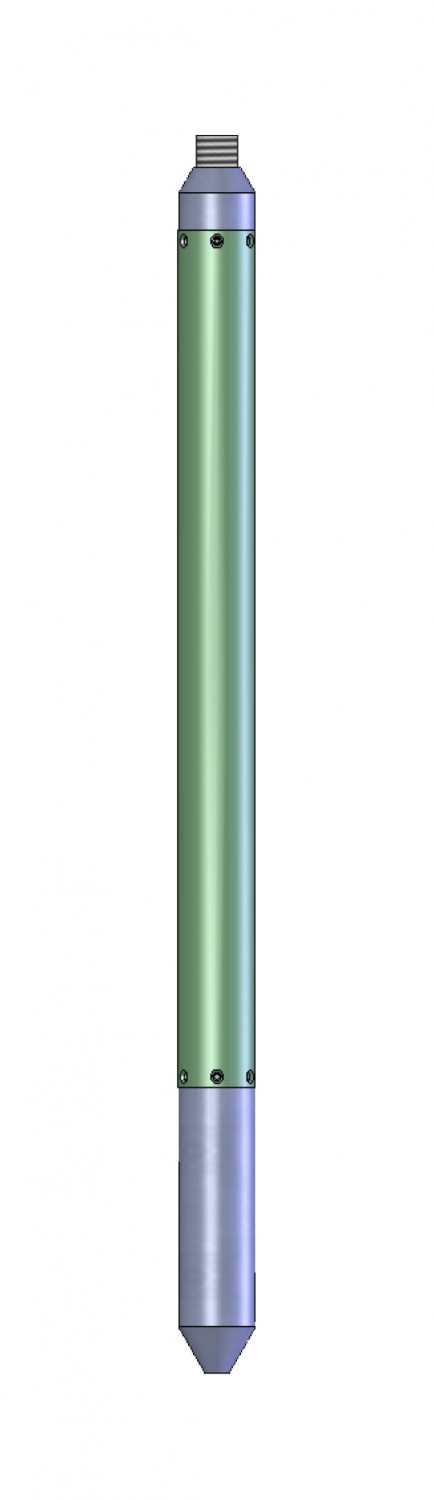

GT9502
Description:
Gamma
Measurement Range:
Natural Gamma: 0 to 100K CPS
Diameter:
41.3mm (1.63″)
Length:
1000mm (39.4″)
Weight:
3.6Kg (8Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20o to 60oC (-4o to 140oF)

GTS0904
Description:
Gamma (slim housing)
Measurement Range:
Natural Gamma: 0 to 100K CPS
Diameter:
28.6mm (1.125″)
Length:
965mm (38.0″)
Weight:
2.9Kg (6.3Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20o to 60oC (-4o to 140oF)
LNA0809
Description:
ADAPTER – Adds 64″ Normal Resistivity to compact GE Probes
Measurement Range:
64″ Normal Resistivity: 0 to 5000 ohm-M
Diameter:
Ø44.5mm (1.75″)
Length:
1003mm (39.5″)
Weight:
2.5Kg (5.5Lb)
Pressure Rating:
30.3MPa (4400PSI)
Operating Temperature:
-20º to 60ºC
(-4º to 140ºF)
