3 SERIES

PORTABLE

BOREHOLE

LOGGERS

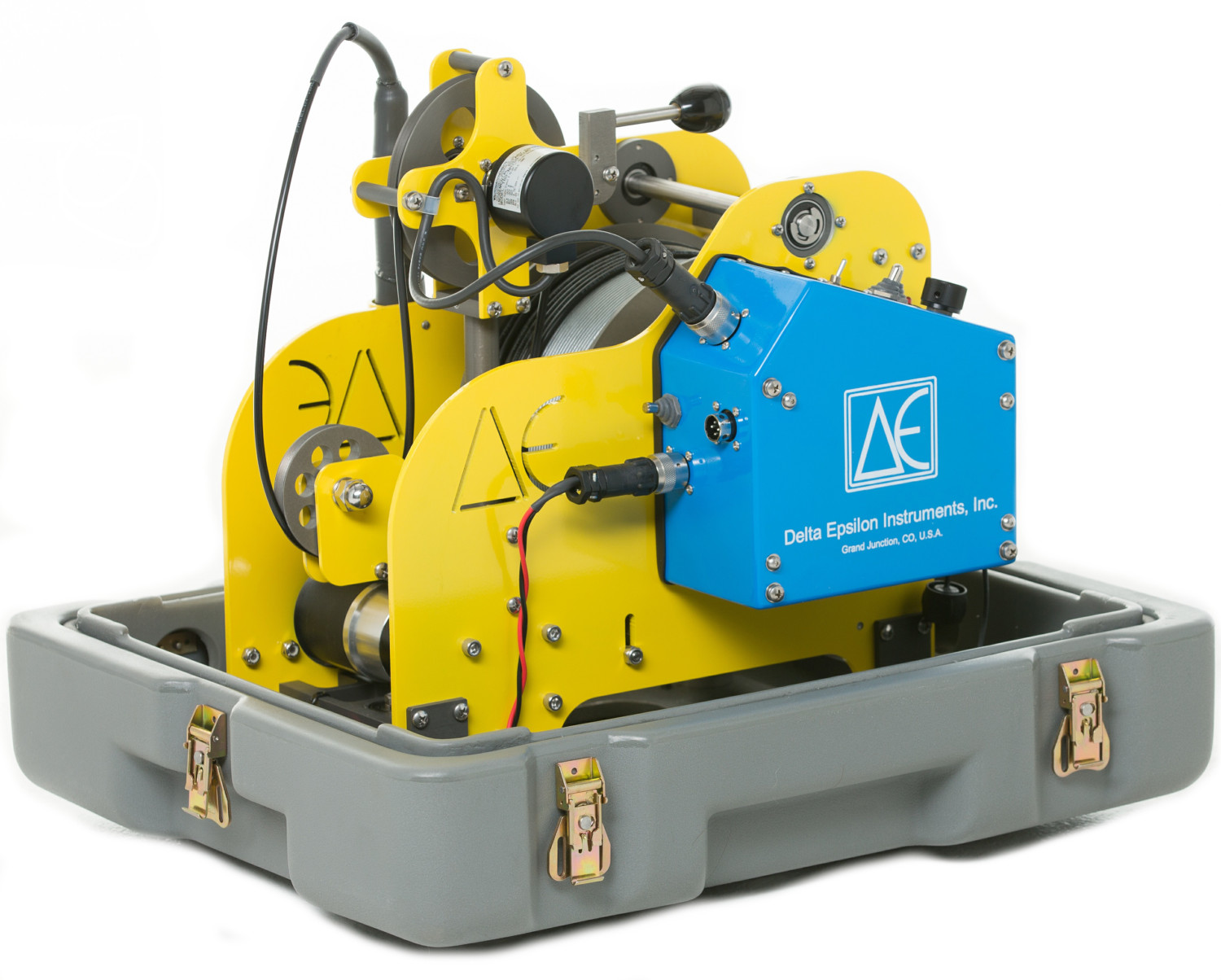

Our most popular logger, this very compact, highly refined, versatile device is in use around the world. Its highly durable design, optimal size and ease of use make it truly unique among commercially available portable borehole loggers.

3 Series Specifications

3 Series:

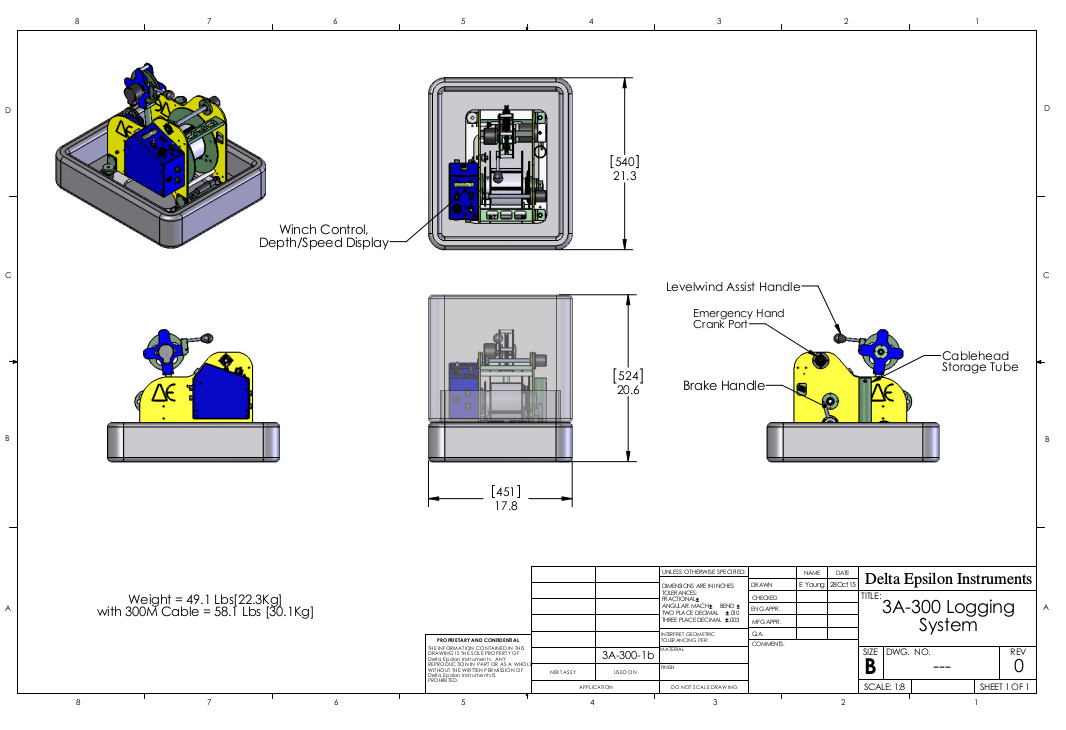

3A-300

Motorized, Semi-automatic levlewind, Emergency hand crank, Disc Brake with uni-directional clutch 300M of Ø.10″ single conductor cable 54cm x 45cm x 52cm

(21.25″ x 17.75″ x 20.63″)

34Kg

(75 Lbs)

External 12-14vdc @ 10A max (3A Nominal) Compatible with all probes except video
  • Runs geophysical logs in boreholes to depths of 400 meters using 0.1” single conductor armored logging cable.
  • Cable level winding is accomplished with a manually initiated device that works on the twist of the cable and not against tension as is the practice on competing winches. This greatly reduces the mechanical force, friction and operator intervention required to evenly spool cable.
  • Like other Delta Epsilon logging systems, the 3 Series borehole loggers also feature a mechanical disc brake. In conjunction with an integral one way clutch, the brake ensures that the winch cannot reverse direction or creep backwards. The brake also ensures that probe descent is always controlled and the winch drum is secured and cannot rotate during transport.
  • The 3 Series logging system is shock mounted in a compact and rugged MIL spec. case for transport and storage. Probes and the supplied field tripod with and integrated cable wiper are also carried in a durable Mil spec case.
  • The 3 Series loggers are self- contained with the winch assembly integrated with the uphole power supply, winch motor controller, backlit digital depth and speed indicators and USB compatible PC interface. The 3 Series runs under the supplied DELogger software with data output stored in the LAS format.

Compact integrated design. Operates directly from 12Vdc source and does not require a generator or inverter. The 3 Series borehole logger is driven by a powerful 12Vdc motor with a highly efficient planetary transmission.

Delta Epsilon portable loggers are available in three basic configurations. Each configuration is a unique, versatile platform optimized for its intended purpose.
